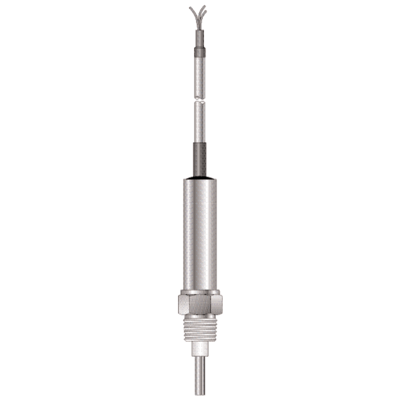

LLS100 Miniature Conductivity Level Switch

Brand: Intempco Controls, Inc

The LLS100 is truly a high quality level switch, which can be used in harsh environments, for liquid level limit detection in metallic and non-metallic tanks containing electrically conductive liquids.

The probe, fitting and housing are constructed of stainless steel 316; the isolator is Teflon.

The LLS100 sensor features built-in protection against reverse polarity, overvoltage and electrical shielding to deliver long-term reliability.

The output is relay SPDT which can be configured as either NO or NC (4-wire) or both NO and NC (5-wire).
Features
  • All stainless steel 316 construction, Teflon isolator
  • Probe bare 316 stainless steel
  • Integral electronic switching, relay output
  • Built-in slosh dampening
  • Hermetically sealed, vibration resistant construction
  • No moving parts
  • For conductive liquids only
  • Minimum or maximum limit detection

Specifications

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Cable Length

  • Extension Cable: Max.
  • Extension: 16.40 feet (5 metres)

Circuit Protection

  • Reverse Voltage

Consumption

  • Power: 120 mW, Max.
  • Power: 50 mA at 24 Vdc

Electrical Contacts

  • Normally Closed
  • Normally Open

Environmental Protection

  • IP67
  • NEMA 6

Materials of Construction

  • Extension: PVC
  • Extension: Teflon with Stainless Steel Armor

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/8” NPT Male

Output

  • Probe: 1 mA - Max.
  • Probe: 1 Vac, Max.

Pressure Rating

  • psi: 100 (kPa: 690, bar: 6.9)

Process Connection Material

  • 316 Stainless Steel

Process Temperature

  • 100° C (212° F) - Max.

Sensitivity

  • 10 kiloohms (Resistive Fluids)

Sensor, Probe Length

  • Probe: 1 to 36” (25.4 to 914.4 mm)

Sensor, Probe Material

  • Probe: 316 Stainless Steel

Supply Voltage

  • 12-30 Vdc

Switch Type

  • SPDT

Termination

  • Lead Wires 22 AWG
  • M12 Micro-Connector (5-Pin Male Receptacle)

Wetted Materials

  • 316 Stainless Steel
  • Teflon

  • Limit Detection of Conductive Liquids
  • Water Level Monitoring in Oil Separators
  • Steam Boilers
  • Waste Water Level Monitoring
  • Leak Detection
  • Coolant Level Monitoring
