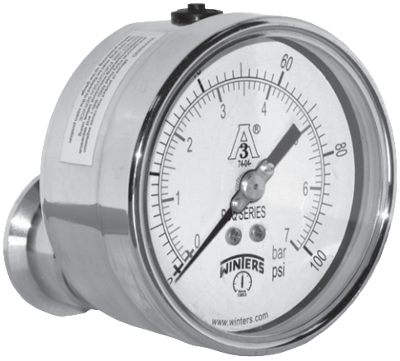

PSQ 3A All-Purpose Quality Sanitary Gauge
Brand: Winters Instruments
Specifications
- Quality series for all sanitary gauge systems
- Food grade glycerin filling standard
- Electro-polish finish
- Industrial grade polycarbonate lens standard
- Clean-In-Place and steam-in-place design
- 0.75”, 1.5” and 2” Tri-Clamp® connections bottom and back
- ASME B40.100 compliant
- CRN Registered
Specifications
Brand
Accuracy
- 2-1/2" (63 mm): ± 1.5 % of Full Scale
- 4" (100 mm): ± 1 % of Full Scale
Ambient Temperature Range
- Glycerin Filled: 4° to 65° C (40° to 150° F)
Approvals & Certifications
- 3-A Sanitary 74-05
- CRN - Canadian Registration Number
- RoHS
Bezel Material
- 304 Stainless Steel
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP65
- IP66
- NEMA 4X
Fill Material
- Food Grade Glycerin
- Mineral Oil
- Neobee M20
- Silicone
Lens
- Polycarbonate Lens
Materials of Construction
- Bourdon Tube, Socket: 316 Stainless Steel
- Dial: Aluminum
Media
- Air
- Gas
- Liquids
- Pasty
- Powder
Movement
- 304 Stainless Steel
Overpressure & Static Pressure Limits
- Overpressure: 15 % over psi: 600 (kPa: 4,100, bar: 41)
- Overpressure: 25 % up to psi: 600 (kPa: 4,100, bar: 41)
Pressure Range
- bar: 0 to 68.95
- inHg: -30 to 0
- kPa: 0 to 6,895
- psi: 0 to 1,000
Process Temperature
- -18° to 121° C (0° to 250° F)
Size
- Dial: 2-1/2" (63 mm)
- Dial: 4" (100 mm)
Temperature Range
- CIP: 121° C (250° F) Continuous
- SIP: 130° C (266° F) 1-Hour, Dry
Tri-Clamp Connection
- 1-1/2" Sanitary Clamp
- 2" Sanitary Clamp
- 3/4" Sanitary Clamp
Wetted Materials
- 316L Stainless Steel, Ra = 8 micro-inches
- Built to Withstand All Sanitary Applications Where 3A Approval is Required Including Food, Beverage and Dairy Industry
- Biotechnology
