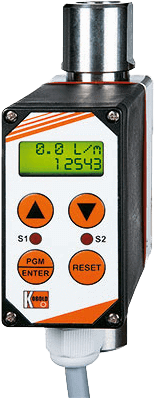

DF-ZL - Digital Flow Meter with Totalizer

Brand: KOBOLD Instruments, Inc

The DF-ZL flow meter's electronics convert the frequency signal generated by the rotating vane into a numeric flow reading displayed on the top line of the LCD display, total flow volume since reset on the bottom, and a scalable analog output signal.

Two relays with SPDT contacts are included and may be utilized for various functions. The relays may also be set to activate when a specific volume has been exceeded.

Freely-adjustable switching points, hysteresis, window point, and switch-on/switch-off delay may be set as desired for each relay.

Red status LED's clearly indicate the switching status of each relay.
Features
  • Rate, Total, and Grand Total
  • LED Display
  • 2 Totalizers
  • 2 Freely Programmable Relays
  • Output of 0(4)-20 mA, 0-10 VDC
  • Made in the USA
  • Quick Delivery

Specifications

Measuring Range

  • 0.02-0.14 to 1.5-36 GPM

Fittings

  • 1/8” to 1-1/2” NPT Thread

Wetted Materials

  • Ni-Plated Brass
  • Polysulfone
  • PVDF
  • FKM
  • NBR
  • Stainless Steel

Maximum Pressure

  • 1450 psig

Maximum Temperature

  • 180° F

Accuracy

  • ± 2.5 % Full Scale

Media Category

  • Liquid
