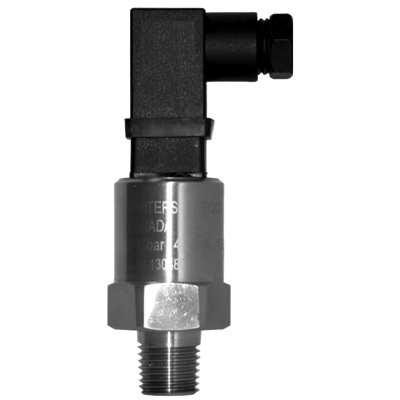

LE1 OEM Transmitter

Brand: Winters Instruments

Specifications
  • Developed for OEM applications
  • Compact stainless steel construction with ceramic sensor
  • Available ranges include Vac up to 8,700 psi (600 bar)
  • Wide range of mechanical and electrical connections
  • Zero and span adjustment option available
  • ±0.5% accuracy (±1% for pressures ≤ 45 psi)
  • IP65 and IP67 enclosure ratings
  • CE approved

Specifications

Accuracy

  • ± 0.5 % of Full Scale Output
  • ± 1 % of Full Scale Output for Pressures ≤ psi: 45 (kPa: 300, bar: 3)

Adjustment Type

  • Zero & Span Adjustment

Approvals & Certifications

  • CE
  • EMC: EMI (EN 50081-1/-2), EMS (EN 50082-2)

BSP Connection

  • G 1/4” Male

Burst Pressure

  • psi: 30 to 26,100 (kPa: 200 to 180,000, bar: 2 to 1,800)

Compensated Temperature

  • -10° to 80° C (14° to 176° F), 70° C (158° F) - Max.

Consumption

  • Current Consumption 2-Wire: 25 mA - Max.
  • Current Consumption 3-Wire: 5 mA (Short-Circuit Current 20 mA)

Diaphragm Material

  • Ceramic

Electrical Connectors

  • Cable Leads
  • M12 x 1
  • Micro Connector
  • Packard

Enclosure, Body Material

  • 304 Stainless Steel

Environmental Protection

  • IP65
  • IP67

Insulation Resistance

  • > 100 megaohms at 50 V

Materials of Construction

  • Pressure Port: 304 Stainless Steel

NPT Connection

  • 1/4” NPT Male

Operating Temperature

  • -40° to 100° C (-40° to 212° F), [85° C (185° F) - Max.

Output

  • 2-Wire: 4-20 mA/Vs = 12-30 Vdc
  • 3-Wire: 0.5-4.5 Vdc/Vs = 10-30 Vdc/ac

Overpressure & Static Pressure Limits

  • Overpressure psi: 15 to 13,050 (kPa: 100 to 90,000, bar: 1 to 900)

Pressure Range

  • bar: -1 to 599.8
  • Inches Hg: -30 to 0
  • kPa: -101.4 to 59,984
  • psi: -14.7 to 8,700

Response Time

  • < 10 milliseconds

Seat / Seal Material

  • Seal: NBR

Sensor, Probe Material

  • Sensor: Ceramic

Shock

  • 20 G at 11 milliseconds

Vibration

  • 10 G at 5 to 200 Hz

  • HVAC Systems
  • Hydraulics & Pneumatics Sensing
  • OEM Applications
  • Pump & Compressor Monitoring
  • Refrigeration Systems
  • Suitable for All Process & Automation Control
