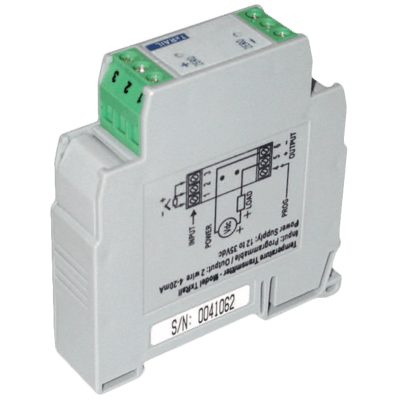

MP200 Series Programmable Temperature Transmitter

Brand: Intempco Controls, Inc

MP200 series comes factory calibrated but is also a fully customer re-programmable temperature transmitter.

In-the-field configuration of input type and working range can be achieved by means of a cable and an RS232 port from a PC.
Features
  • Programmable input: Thermocouple, RTD, mV
  • 2 or 3-wire Pt100 input with linearized output
  • 2-wire loop-powered 4-20 mA/20-4 mA output
  • Cold junction compensation for thermocouples
  • Configuration with a PC via TxConfig interface

Specifications

Accuracy

  • Pt100 & Voltage: 0.2 %
  • Thermocouples: Better than 0.3 % of The, Max.

Communication

  • RS-232

Enclosure, Body Material

  • ABS UL 94-HB

Input

  • 0-50 mVdc, Impedance > > 1M

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 2-Wire Loop Powered 20-4 mA, Linear to Temperature
  • 2-Wire Loop Powered 4-20 mA, Linear to Temperature

Power Supply

  • 12-35 Vdc, Across the Transmitter

Resolution

  • 14-bits (0.001 mA)

Response Time

  • < 500 milliseconds

RTD Type

  • Pt100, Excitation: 180 µA, 2 or 3-Wire Connection (For 2-Wire Sensors, Tie Terminals 2 & 3 Together) α = 0.00385

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • N Thermocouple
  • RTD
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple

Span - Minimum

  • Thermocouple: 40° to 400° C (104° to 752° F)
  • Voltage: 5 mV

Temperature Range

  • 0° to 1,760° C (32° to 3,200° F)
