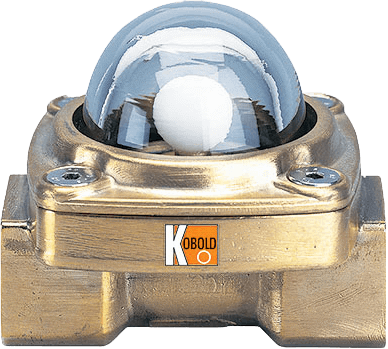

DKB Series Flow Indicators with Ball
Brand: KOBOLD Instruments, IncThe KOBOLD DKB visual flow indicator with ball is ideal for use in either air or liquid flow applications.
The absence of wear components ensures high reliability in installations unsuitable for indicators using bearings with a rotating wheel or turbine.
The bright float used in the DKB is easily seen from elevated positions and when viewed from a distance. Our domed sight glass allows full 360° visibility from above.
Features- Usable With Air
- Horizontal Installation Only
- Highly Visible
- Economical
- Made in the USA
- Quick Delivery
Specifications
Water Ranges
- 0.014-4.0 GPM to 0.047-27.0 GPM
Air Ranges
- 0.0.11-14 SCFM to 0.32-88 SCFM
Maximum Pressure
- 85 psig
Maximum Temperature
- 250° F
Connection
- 1/8" to 1" NPT Thread
Body Material
- Brass
Media Categories
- Gas
- Liquid
