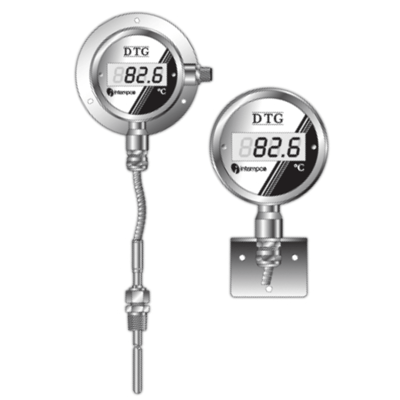

DTG12 Digital Temperature Gauge

Brand: Intempco Controls, Inc

The Model DTG12, Digital Temperature Gauge, is a complete solution for most industrial temperature monitoring and temperature indicating applications.

This gage features a bright and large 4-digit red LED display, optional Analog 4-20mA output, optional switch output, and an optional RTD output.

Utilizing Intempco’s patented MIST technology and the self-calibration feature, DTG is designed for optimum accuracy and performance.

The DTG is designed as a direct replacement for bi-metal, liquid bulb and glass thermometers.

Digital Display indicator can be flange, bezel, or bracket mount. DTG can be factory calibrated to customer specified temperature range, in units of Celsius or Fahrenheit.

But the unique feature of the DTG is that it is field programmable. Use DTG-PKIT interface module and re-range your DTG without the need to recalibrate and without the loss of accuracy.

DTG is much more accurate than an RTD and a separate indicator / transmitter. When the DTG is re-scaled to a different temperature range, the calibrated default values are not lost.

This gauge can be customer re-calibrated by performing one-point or two-point calibration using known temperature standards.

Indicating temperature range, current output, switch set point, switching hysterises, switch logic, damping and other features all programmable.
Features
  • Large 4-digit red LED display
  • Field re-programmable with optional PC interface module and software
  • Security temper protection for re-programming
  • Optional 4-20mA programmable linearized signal output
  • Optional fully programmable switch output, relay or transistor
  • Utilizes self-calibration feature for accurate and stable performance
  • Utilizes Pt-100 Ohm RTD Class A element for temperature sensing
  • Micro M12 male plug or cable gland for electrical connection
  • IP65/NEMA 4 rated environmental protection
  • All stainless steel 316 construction
  • Easy installation with various mounting configurations

Specifications

Cable Length

  • Straight, Right Angle: 16.40 feet (5 metres)
  • Straight, Right Angle: 6.56 feet (2 metres)

Cable Material

  • Polyolefin Shrink
  • PVC
  • Silicone
  • Teflon

Display

  • 4-Digit LED

Electrical Connectors

  • Cable
  • M12 Micro-Male Connector

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 4

Materials of Construction

  • Ferrule Material & Armor of Cable: Stainless Steel
  • Ferrule Material: Teflon
  • Fitting & Ferrule Material: Brass
  • Fitting: 316 Stainless Steel

Mounting

  • Back Mounting
  • Side Mounting
  • Top & Bottom

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/4” NPT Male
  • 3/8” NPT Male

Output

  • 4-20 mA, 3-Wire

Sensor, Probe Diameter

  • Probe (Sheath O.D.): 1/4 to 5/8” (6.4 to 15.9 mm)
  • Probe (Tip O.D.): 1/8 to 1/4” (3.175 to 6.35 mm)
  • Probe: 1/4 to 1/2” (6.4 to 12.7 mm)

Sensor, Probe Material

  • Probe: 316 Stainless Steel
  • Probe: 316L Stainless Steel

Sensor, Probe Type

  • RTD

Switch Type

  • SPDT
  • Transistor

Temperature Range

  • -200° to 600° C (-328° to 1,112° F)

  • Replacement for Bi-Metal, Liquid Bulb and Glass Thermometers
  • Pharmaceutical
  • Food Preparation
  • Utilities and Municipal
  • Refineries
  • Chemical and Petrochemical Plants
  • Paper Mills
  • Hydraulics
