MIST M30 RTD Temperature Transmitter

Brand: Intempco Controls, Inc

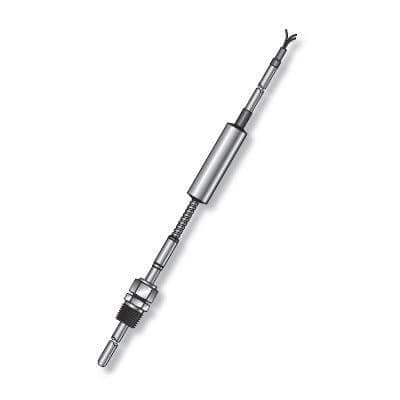

MIST M30 RTD Pt 100 temperature sensor a complete RTD temperature sensor probe, signal conditioner and 4-20 mA output.

Intempco MIST patented RTD (Pt100) sensor probes contain miniature programmable temperature transmitters in the TJ transition junction or in the 2-Wire 4-20 mA dc output lead wire.

Mist Microprocessor Integrated Sensor Transmitters can be fitted with M12 quick disconnect automation connectors, 3-A sanitary and NPT threads.

Process connections can be fixed welded or adjustable compression.

Via experience with 10,000+ OEM and process RTD applications installed, the adverse effects of electrical noise can be reduced and lead wire lengths extended with Intempco MIST RTD technology.
Features
  • Small compact size (connection head not required)
  • Built-in 4-20 mA, 2-wire temperature transmitter
  • Hermetically sealed transmitter
  • Factory calibrated 4-20 mA output
  • Output: 4-20 mA, 0-5, 1-5, 0-10 Vdc
  • Operating temperature range -50° to 200° C (-58° to 392° F) (fixed or field programmable)
  • Accuracy ±(0.10° C + 0.10% of calibrated span) with 2 point calibration
  • MIST PKIT programming kit to re-program and re-calibrate
  • 316 Stainless Steel probe and process fittings
  • Cable PVC, Teflon, Teflon with SS Armor
  • M12 connection or leadwire length as required
  • Probe lengths, diameters and process connection options as required
  • Requires 2-wire loop power, 10-32 Vdc

Specifications

Accuracy

  • ± (0.10° C (0.18° F) + 0.10 % of Calibrated Span) with Two-Point Calibration

Cable Material

  • PVC
  • Teflon

Electrical - Free Leads

  • 22 AWG, 12” Long Extension Wire

Electrical Connectors

  • M12 Micro-Male Connector

Instrument Connection

  • 1/2” NPS Male
  • 1/2” NPT Male

Materials of Construction

  • Armor over Teflon Cable, Overbraid & Ferrule: Stainless Steel
  • Ferrule: Brass
  • Ferrule: Teflon
  • Shrink for Teflon Cable: Polyolefin

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/4” NPT Male
  • 3/8” NPT Male

Operating Temperature

  • -50° to 200° C (-58° to 392° F)

Output

  • 0-10 Vdc Linear to Temperature
  • 0-5 Vdc Linear to Temperature
  • 1-5 Vdc Linear to Temperature
  • 4-20 mA Loop Powered, Linear to Temperature

Power Supply

  • 10-32 Vdc, 2-Wire Loop Power

Process Connection Material

  • Brass
  • Stainless Steel

Process Fitting Details

  • Adjustable Fitting

Relief

  • Strain Relief

RTD Type

  • Pt100

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Diameter

  • 1/8 to 1/2” (3.17 to 12.7 mm)

Sensor, Probe Material

  • 316 Stainless Steel
  • 316L Stainless Steel

Sensor, Probe Type

  • RTD

Temperature Range

  • Sensor: -200° to 600° C (-328° to 1,112° F)

  • Fluid Temperature
  • Air Temperature
  • Process Heat Exchanger
  • Sanitary 3A
  • Programmable Transmitter
