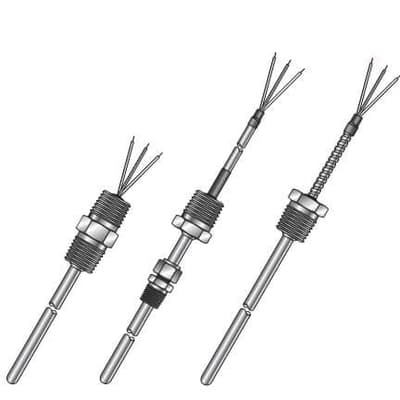

R15/R16/R17 Direct Immersion RTD

Brand: Intempco Controls, Inc
Favorite

Specifications
  • General purpose RTD for industrial applications
  • PVC or Teflon leads available
  • Fitting welded to probe
  • Many fitting sizes and probe diameters available
  • RTD Pt100 ohm standard, others available
  • 2-, 3- or 4-wire circuit types
  • Isolation to 1,000 Vdc
  • Factory calibration certificate optional
  • Custom designs available

Specifications

Brand

Materials of Construction

  • Lead Wire Insulation (Overall Jacket): Aluminum
  • Lead Wire Insulation (Overall Jacket): Mylar
  • Lead Wire Insulation: Glass
  • Lead Wire Insulation: Teflon

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/4” NPT Male
  • 3/8” NPT Male

RTD Type

  • Pt100 ohm at 0° C (32° F), α = 0.00385 DIN EN 60751
  • Pt1000 ohm at 0° C (32° F), α = 0.00385 DIN EN 60751

Sensor, Probe Connection

  • 2-Wire (Single/Dual)
  • 3-Wire (Single/Dual)
  • 4-Wire (Single/Dual)

Sensor, Probe Diameter

  • Probe: 1/8 to 1/2” (3.17 to 12.7 mm)

Sensor, Probe Material

  • Probe: 316 Stainless Steel
  • Probe: 316L Stainless Steel
  • Probe: Inconel 600

Temperature Range

  • -200° to 600° C (-328° to 1,112° F)
  • Lead Wire Insulation: 200° to 482° C (392° to 900° F)

Tolerance

  • Element: ± 0.04 % (± 0.1° C) at 0° C (32° F), Class AA
  • Element: ± 0.06 % (± 0.15° C) at 0° C (32° F), Class A
  • Element: ± 0.12 % (± 0.3° C) at 0° C (32° F), Class B
