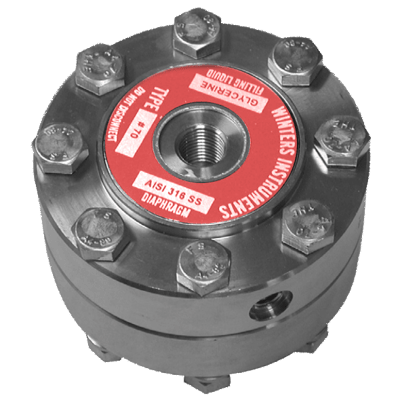

D70 Diaphragm Seal

Brand: Winters Instruments

Features
  • Two piece construction and designed to withstand even the most severe process applications
  • “Continuous use” seals–backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
  • Diaphragm is separable for servicing and is available with a 1/8” NPT or 1/4” NPT flushing connection for removing any material which may clog the process connection
  • Standard diaphragm is constructed of AISI 316L stainless steel and welded to the upper chamber of the seal for pressures 30 psi (200 kPa) and above; optional Viton® diaphragm available for ranges from 30” Hg Vacuum (-100 kPa) up to 100 psi (690 kPa). Others diaphragms available
  • FKM is highly recommended for applications less than 10 psi
  • ASME B40.100 compliant
  • RoHS compliant
  • CRN registered (all 316 SS only)
  • 5 year warranty

Specifications

Approvals & Certifications

  • CRN (All 316 Stainless Steel Only)
  • RoHS

Diaphragm Material

  • 316L Stainless Steel
  • Hastelloy C
  • Monel
  • Viton

Enclosure, Body Material

  • 316L Stainless Steel
  • Hastelloy C
  • Monel

Fill Material

  • Fluorolube
  • Silicone

Gasket Material

  • Buna-N
  • Teflon
  • Viton

Gauge Connection

  • 1/2" NPT Female
  • 1/4" NPT Female

Materials of Construction

  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy B
  • PVC
  • Tantalum
  • Teflon
  • Titanium

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/4" NPT Female

Pressure Range

  • bar: -1 to 172.5
  • kPa: -100 to 17,250
  • psi: -14.7 to 2,500

Process Temperature

  • -30° to 100° C (-22° to 212° F)

  • Where the Process Fluid is Corrosive or Viscous and Would Clog Instrument Internals/Solidify Within the Pressure Gauge, Switch or Transmitter
  • Two Piece Construction & Designed to withstand Most Severe Process Applications
